better homes & gardens meritmoor aluminum steel pergola

Detailed Product Description

Size:	Customized Size, Can Be Customized, Standard Or Customized, Customizable	Surface Treatment:	Powder Coating
Material:	Normal Aluminum	Profile Thickness:	2.0-4.0mm Thickness
Advantage:	Heat Insulation,Waterpfoof,UV Protection	Application:	Commercial Building/Residential, Apartment, Villa, Residential Houses, Offices
Roof:	Polycarbonate Solid Sheets
High Light:	2.5m Outdoor Garden Gazebo , Rainproof Outdoor Garden Gazebo , 6063 T5 Aluminum Pergola With Louvered Roof

Outdoor Aluminium Waterproof Louvered Pergola Garden Gazebos

Outdoor Waterproof Aluminium Louvered Pergola

PergoLam is a combination between pergola and horizontal louver which is completely made of aluminum and allows light and breeze when open. Using an electric telescopic engine connection system through parts and aluminum extrusions specially designed, the slats are dosed completely sealed preventing the passage of light and water. When closed the slats become channels that carry the water to the sides that have their own system of canals and water should turn towards the poles where it drains. Guaranteed to
withstand severe climatic changes and winds of up to 100 KM/h . (The resistance is not guaranteed under the weight of snow).

● Aluminum Frame ● Wind Resistance ● Energy savings ● Rainproof Flap
● Engines Control ● Multiple Mounting Options ● Customized Design

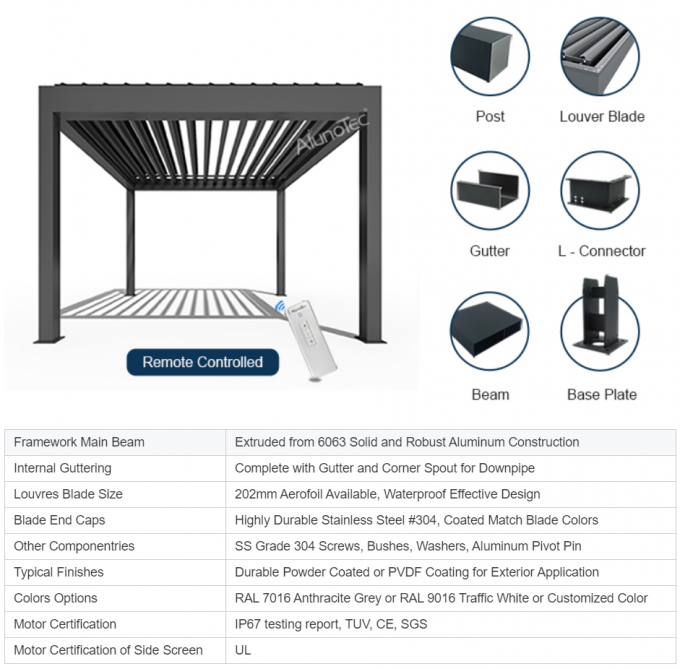

Specifications Of Aluminium Pergola

Material	Aluminium alloy 6063 T5
Optional Accessories	Side Screen/ LED Light/Wind & Rain Sensor/Heater,etc
Rianfall Intensity	0.04-0.05L/S/m2
Snow Load	UP to 120kg/m2
Win Resistance	UP to 120km/h for closed blades
Maximum Width	2.5m - 13.5m
Maximum Projection	2.5m - 5.8m
Electric Motor's Voltage	110V Or 230V
Remote Control	1 Channel or 5 Channel
Linear Strip LED Lights	3000K Yellow
Max Size of Side Screen	5m x 3m
Installation	The installation instruction or video will provided

*. RAIN RESISTANCE

The pergola cover has been designed to shelter from the rain thus allowing to obtain an open-air outdoor space that can be lived in every season thanks to perfect air conditioning and perimeter closures that can be made with awnings or windows.

*. SNOW RESISTANCE

The pergola cover was also designed to shelter from rain and snow, thus allowing for an open-air outdoor space that can be lived in every season thanks to perfect air conditioning.

*. VENTILATION AND LIGHT TRANSMISSION

The structure of the pergola can be furnished as desired, becoming an outdoor dining room, solarium, study with an open air view.It looks like a space that allows a comfortable covered and sheltered view towards the outside.

*. SUNSHADE

The bioclimatic pergolas with adjustable sunshade blades can be installed in terraces, gardens, bars, restaurants, dehors, verandas, stalls and allow you to create new outdoor spaces to be used in every season and sheltered from sun, wind, rain and snow.
